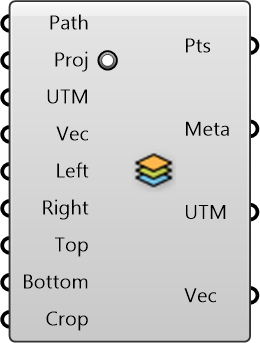

Import Shapefile Features

Import data from GIS shapefiles

Inputs

  • Path []
    Specify the path to the shapefile (.shp)
  • Proj []
    Change the map projection to WGS84 datum (recommended), default is true
  • UTM []
    UTM Zone of the given region (can be used along with translation vector) to transform data from different sources to a common origin)
  • Vec []
    Translation vector to move from actual UTM window to working origin (can be used to transform data from different sources to a common origin)
  • Left []
    Left Bound (Longitude, x-axis) of the OSM region
  • Right Bound (Longitude, x-axis) of the OSM region
  • Top []
    Top Bound (Latitude, y-axis) of the OSM region
  • Bottom []
    Bottom Bound (Latitude, y-axis) of the OSM region
  • Crop []
    Cropping Geometry

Outputs

  • Pts
    Points representing the features (could form polyline, polygon, or single point) depending on what is imported
  • Meta
    Serializable dictionary with string keys and arbitrary values
  • UTM
    UTM Zone of the given region (can be used along with translation vector) to transform data from different sources to a common origin)
  • Vec
    Translation vector to move from actual UTM window to working origin (can be used to transform data from different sources to a common origin)
